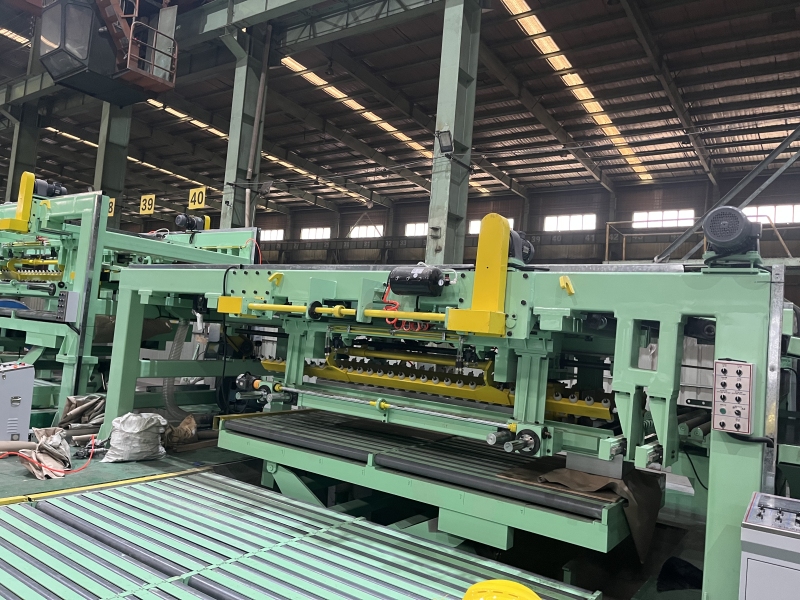

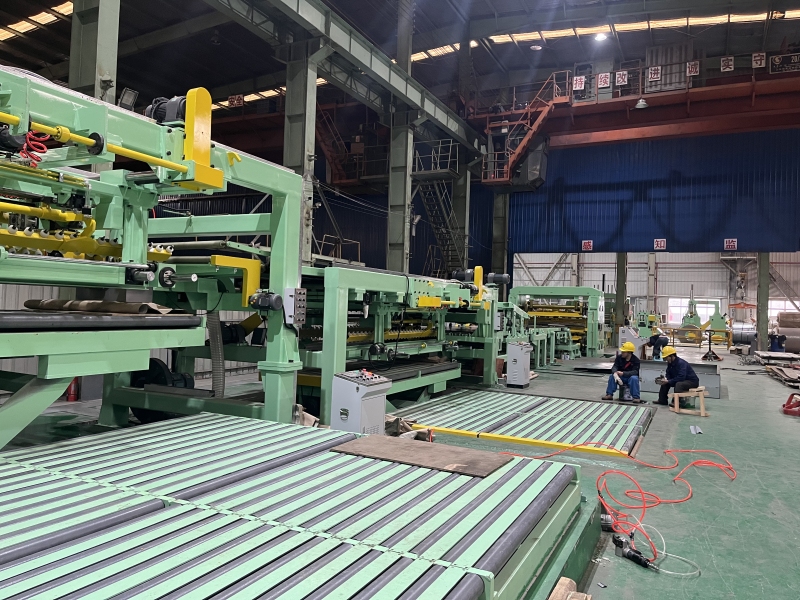

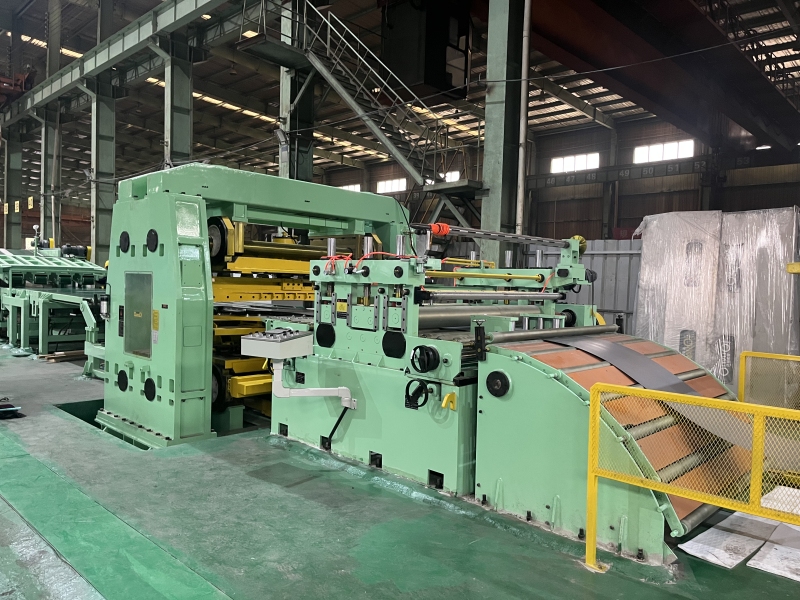

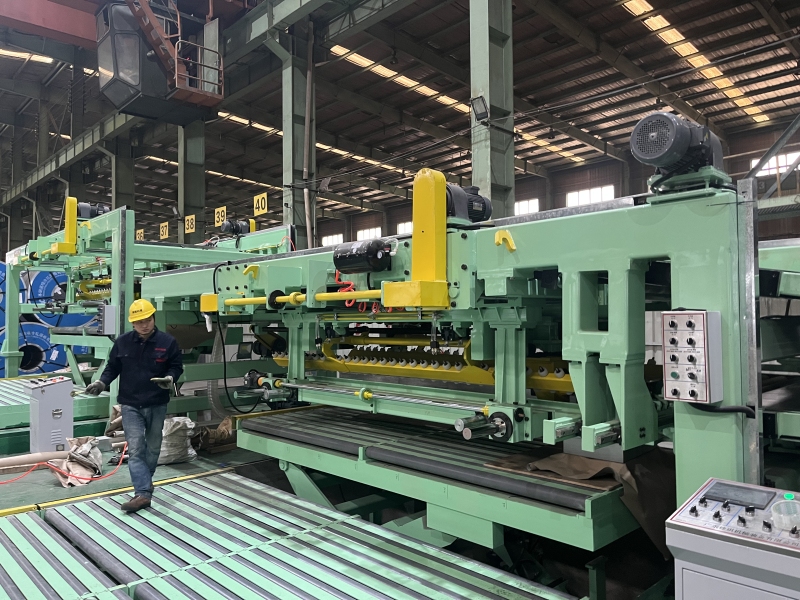

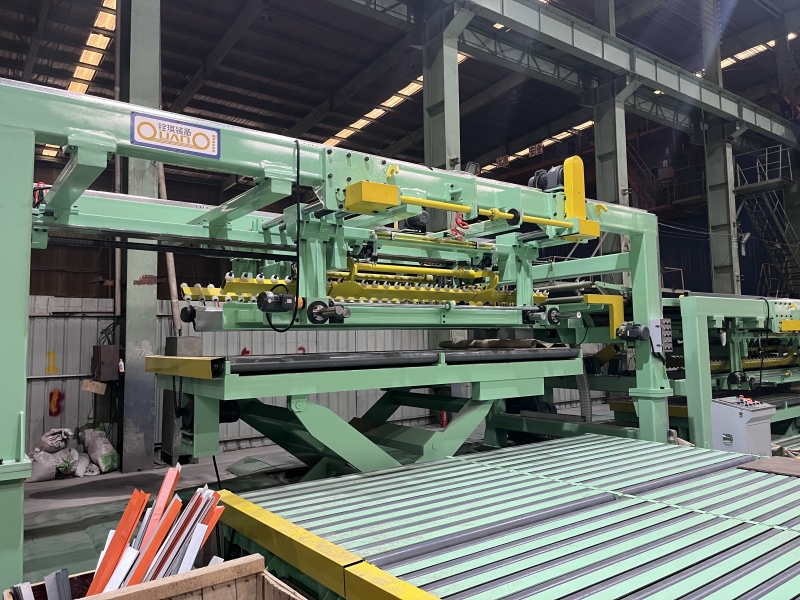

steel coil pendulum fly shear line

Raw material data:

Raw material: SS, PPGI, CR

Coil thickness: 0.3-3.0mm

Coil wide: 200-1850mm

Line speed: 70m/min

Coil weight: 25 T

Sheet length: 500-4000/6000mm

Stacker No.: 2 sets

Paper winder: 1 set

PVC laminator: 1 set

Papercoator:1setwith Electrostatic generator

Pendulum angle: 30 degree

Special funciton of leveler: 2 set Servo motor adjust upper set leveler gap with bottom leveler set, And has data memorial function to save in system, Next time use to flat same thickness, just set thickness in the touch screen, Upper leveler set will auto come to the memoried gap

Special funciton of leveler bottom set backup roll adjust: 7 set Servo motor adjust bottom set leveler roller bent condition as per raw material waves condition, And has data memorial function to save in system, Next time use to adjust backup roller to flat same thickness, just set thickness in the touch screen, back up roller set will auto come to the saved data

Special funciton of servo shear: 1 set Servo motor adjust upper set blade gap, And has data memorial function to save in system, Next time use to cut same thickness, just set thickness in the touch screen, blade will auto come to the memoried gap
