Automatic Steel Coil Cutting Machine
Automatic Steel Coil Cutting Machine
1, lots of casting part using in the line, such as decoiler drum, wedge
2, use international brand bearing, such as NSK, SKF, TIMKEN, NTN
3, use forged alloy roller in the leveler and other parts
4, use copper plate in all sliding and moving touched area to make line accuracy after long time using
-
Product Category
- - Slitting Line
- - Cut To Length Line
- - Fly shear
- - slitting/CTL spares
- - Pendulum shear
Automatic Steel Coil Cutting Machine
Raw material data
Raw material: SS, CR, PPGI Coil wide: 200-1500mm Coil weight: 25 T
Coil thickness: 0.3-3.0mm Leveler type: 6 HI 19 roller Line speed: 60m/min
Sheet length: 500-4000mm PVC coater: both side Paper coator: upper side
Automatic Steel Coil Cutting Machine layout drawing
Full Auto Steel Coil Cut To Length Line layout
Full Auto Steel Coil Cut To Length Line composition

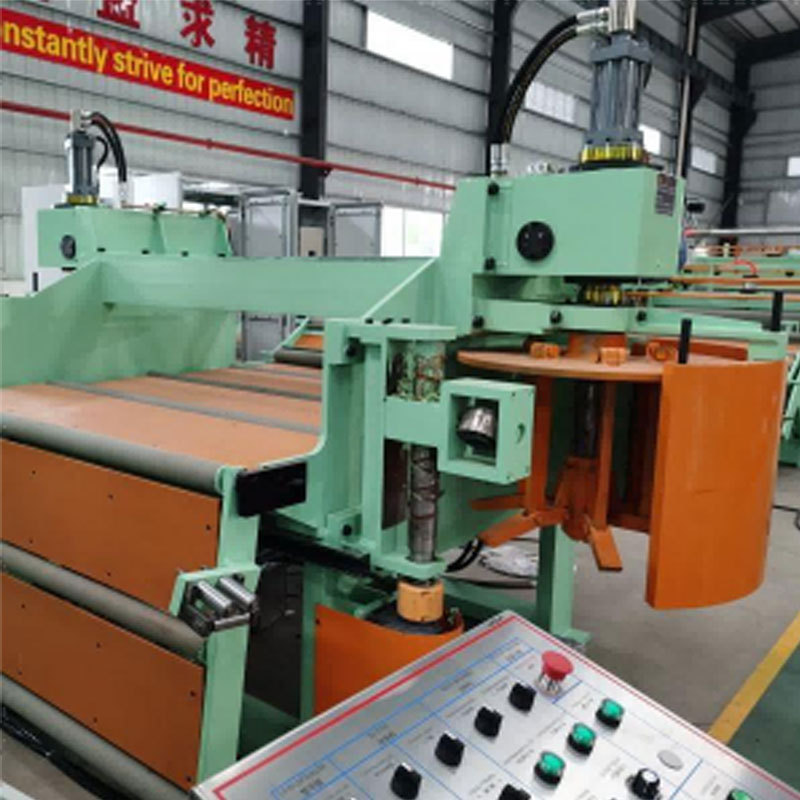

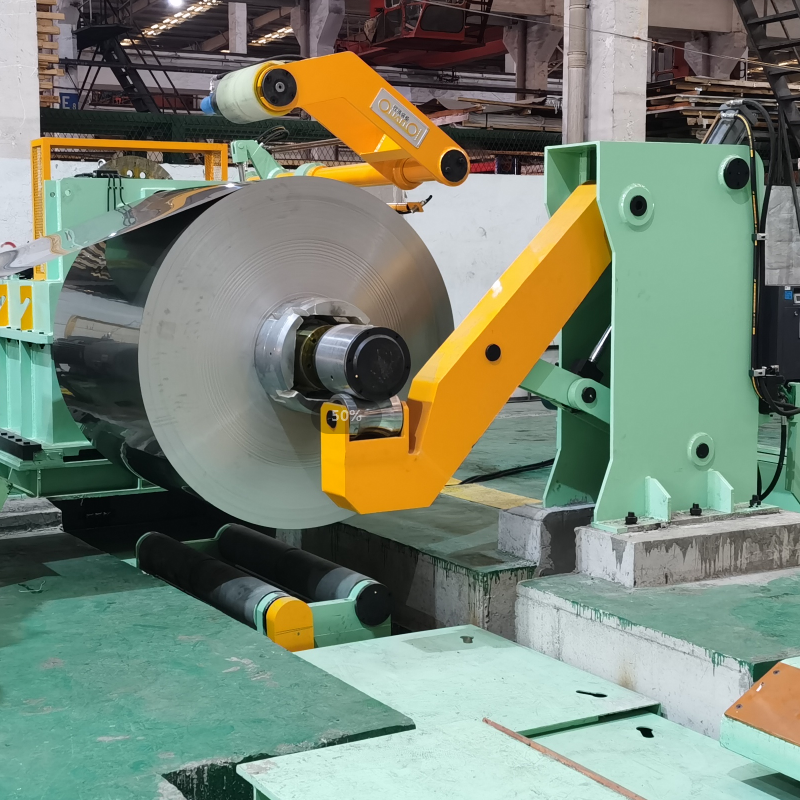

| 1, Coil saddle | 2, Paper winder | 3, Decoiler with snubber |

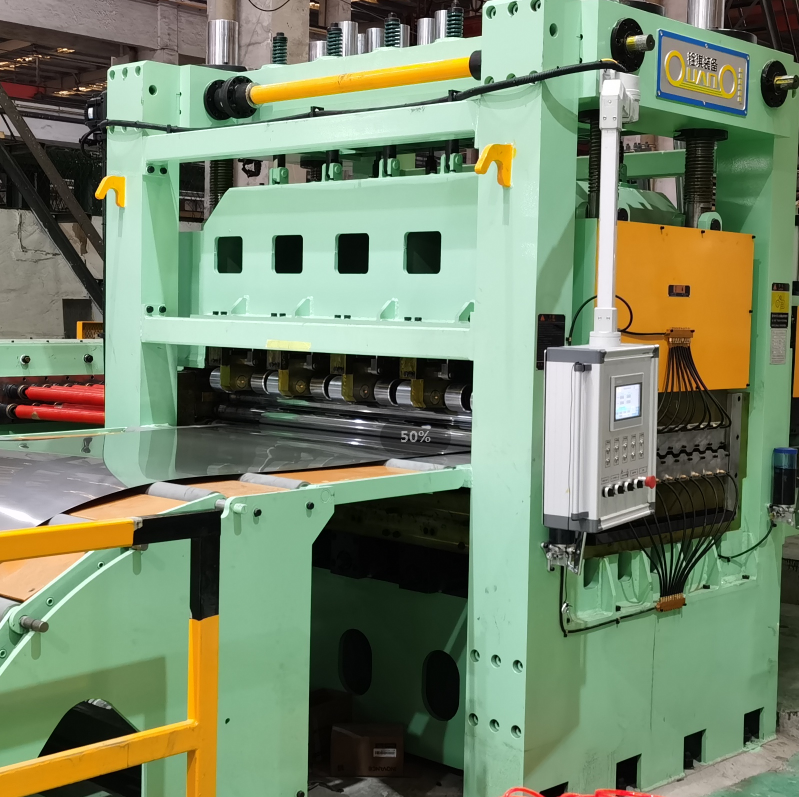

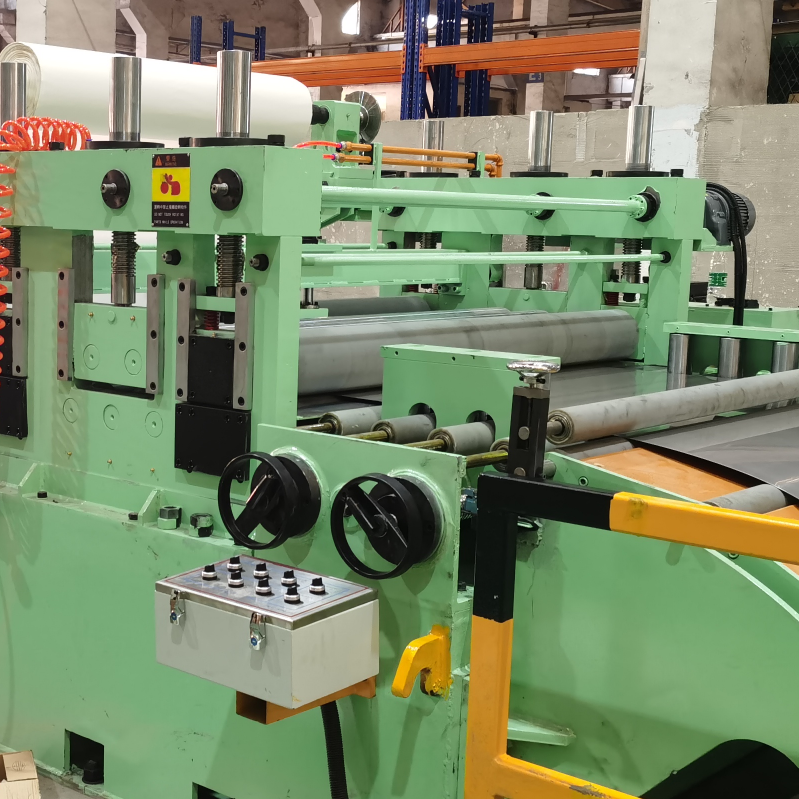

| 4, Pinch roller, 6 hi leveler | 5, loop bridge | 6, Guider, NC feeder(PVC) |

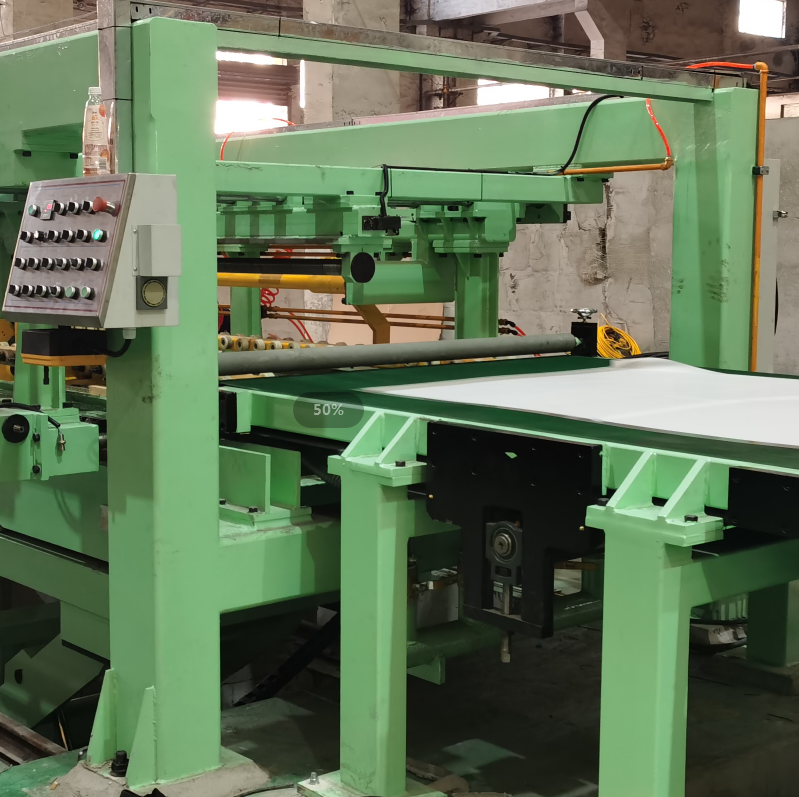

| 7, Servo shear | 8, output roller table | 9, Lift table |
| 10, hydr system | 11, electric system |
Full Auto Steel Coil Cut To Length Line Picture show
How we works for each component to handle the line quality of cut to length line
1, process the main components by our CNC machine that imported from USA
2, Main shaft choosing forged 42CrMo alloy steel to strengthen its mechanical ability
3, High speed feedback of services.
4, Advanced electric control system, Only one netwire out from main cabinet
5, Heavy steel body with tempered and quenched then sand blasting to remove surface oil and rust
About us
Guangdong Quanqi Machinery Equipment Co., Ltd. is specializing in R & D, production and manufacturing of metal Slitter, crosscutting machine, leveling machine, flying shear, metal longitudinal shear, stainless steel leveling machine, aluminum strip leveling machine, general steel leveling machine manufacturer and exporter. In combination with its own team advantages and advanced production management system, the company has formulated long-term R & D objectives, tasks and export instructions, requiring all products and spare parts produced to be higher than the national standards, higher than Taiwan's mechanical properties, and in line with the process and appearance of the top European and American manufacturers. The R & D team inherits the original Taiwan Tengqi process, and updates the design process in combination with customer feedback to achieve the goal of exceeding The advanced level of machinery and equipment in Taiwan. As a pure technology-based production and manufacturing enterprise, we regard products as art, and we will carve out the most perfect art for each customer, so that the products have the most stable and long-term use and life
Our company has a scale of 15000 square meters. It is a large-scale processing and manufacturing enterprise base in the industry. There are 5 core designers, 5 senior sales engineers, 1 production inspector, 6 quality inspectors, 15 senior installation and commissioning engineers, 38 production employees, a total of 165. The company requires all load-bearing archways to be tempered and reprocessed, using the machining center for precision machining, all gear hobbing, gear grinding and re nitriding, so that the gear contact position can reach the optimal contact and have the longest life Other components such as life and mechanical properties are manufactured to the highest standards in the industry
Soon after the establishment of the company, it caused great repercussions in the industry and quickly accumulated a good reputation, because we strictly abide by the contract with customers, and our consistent purpose is to make customers clearly understand the products they want to purchase and get the products specified in the contract, without any deviation in understanding. Our team is ready for 24-hour service, which is basically committed to be achieved within 12 hours in Guangdong Province and 24 hours in other provinces. Foreign customers depend on the situation. Our service is to solve customer problems and customer needs in the fastest and most efficient way in the form of express delivery. We believe that customer satisfaction is our greatest pride.
We have a special "no" culture, the specific understanding is: do not cut corners, do not compete with inferior peers in price, do not try to have technology on customers, do not accept unqualified products, do not ship imperfect products, do not hire unqualified talents, do not obey management
Coperated famous buyers with us
